Power Steering Pump Belt: Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering belt on the crankshaft pulley.
    2. NOTE: After installation, make sure the power steering pump belt is correctly seated on the crankshaft and power steering pulleys.

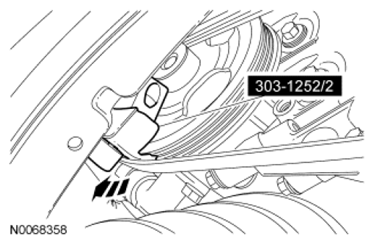

    Fig 1: Installing Power Steering Pump Belt
    G06505134Courtesy of FORD MOTOR CO.
  2. Position the power steering belt around the Stretchy Belt Installer Tool and the power steering pulley. Make sure that the belt is engaged with the power steering pulley and rotate the crankshaft clockwise to install the power steering belt.
  3. Position the accessory drive belt on the crankshaft pulley.
    4. NOTE: After installation, make sure the accessory drive belt is correctly seated on all pulleys.
  4. Working from the top of the vehicle, rotate the accessory drive belt tensioner clockwise and install the accessory drive belt.
  5. Install the RH inner fender splash shield. For additional information, refer to FRONT END BODY PANELS .
