RH Catalytic Converter and Exhaust Flexible Pipe
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

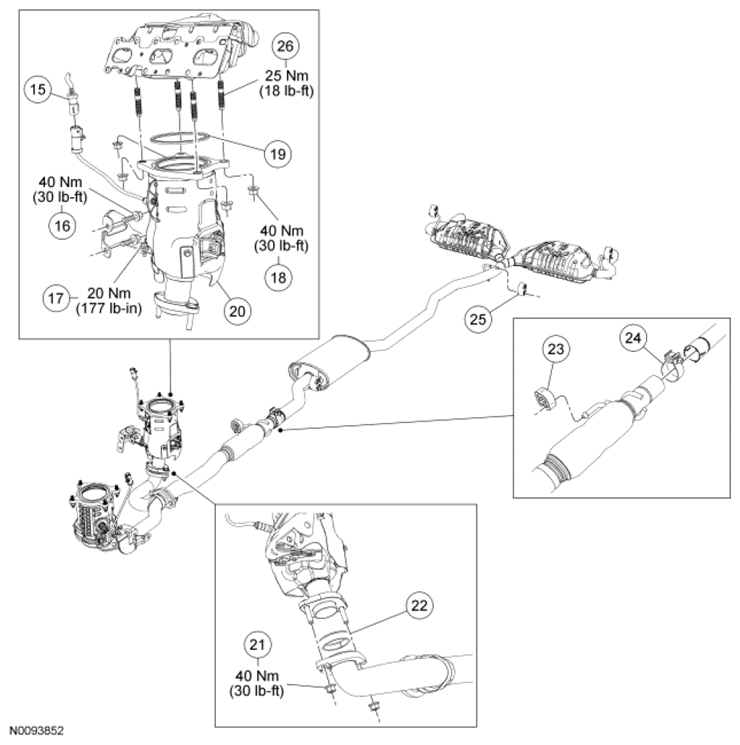

Fig 1: RH Catalytic Converter And Exhaust Flexible Pipe Replacement Components With Torque Specifications
DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 15 | 14A464 | RH catalyst monitor sensor electrical connector |
| 16 | W710512/W705443 | RH catalytic converter support bracket-to-engine block bolt (2 required) (Front Wheel Drive (FWD) nut) |
| 17 | W500222 | Bracket-to-RH catalytic converter bolt (2 required) |
| 18 | W705443 | RH catalytic converter-to-exhaust manifold nut (4 required) |
| 19 | 5F263 | Gasket |
| 20 | 5E211 | RH catalytic converter |
| 21 | W705443 | Exhaust Y-pipe-to-RH catalytic converter nut (2 required) |
| 22 | 5E241 | Gasket |
| 23 | 5F262 | Exhaust flexible pipe isolator |
| 24 | 5221 | Torca® clamp |
| 25 | 5F262 | Muffler and tailpipe isolator (4 required) |
| 26 | W712458 | RH catalytic converter-to-exhaust manifold stud (4 required) |
