Toe Adjustment - Front

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine and center the steering wheel.
Turn the engine OFF and, using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.
Using alignment equipment and the manufacturer's instructions, measure the front toe.
Remove the steering gear bellows clamps.

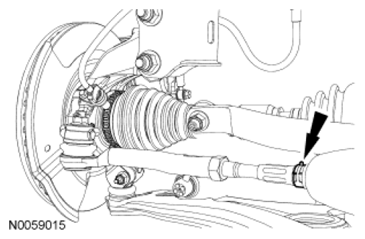

Fig 1: Locating Steering Gear Bellows Clamp
Courtesy of FORD MOTOR CO.
Loosen the tie-rod jam nuts.

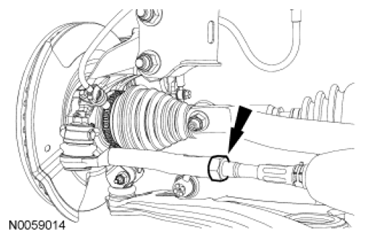

Fig 2: Locating Tie-Rod Jam Nut
Courtesy of FORD MOTOR CO.

NOTE: Do not allow the steering gear bellows to twist when the tie rod is rotated.

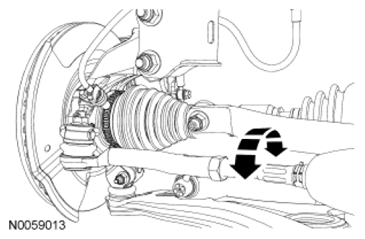

Fig 3: Rotating Tie Rod

Courtesy of FORD MOTOR CO.

Rotate the tie rods until the toe setting is within specifications.
Tighten the jam nuts to 90 Nm (66 lb-ft).
Install the steering gear bellows clamps.
