Rear Ride Height Measurement
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

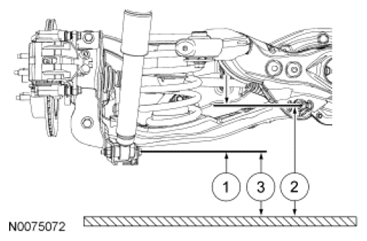

REAR RIDE HEIGHT MEASUREMENT DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Ride height = 2 - 3 |
| 2 | Measurement 2 |
| 3 | Measurement 3 |
NOTE:
Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
- Measure the distance between the same flat level surface and the center of the lower arm-to-subframe bolt (measurement 2).
- Measure the distance between the flat level surface and the center of the lower shock bolt (measurement 3).
- Subtract measurement 3 from measurement 2 to obtain the rear ride height.
- Refer to SPECIFICATIONS .
