Wheel Alignment Angles: Caster
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

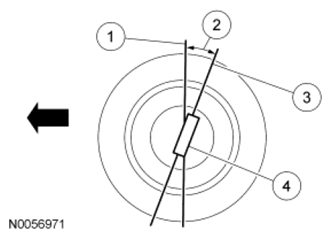

ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | True vertical |
| 2 | Positive caster angle |
| 3 | Shock centerline |
| 4 | Pivot centerline |
Caster is the deviation from vertical of an imaginary line drawn through the ball joints when viewed from the side. The caster specifications in this information will give the vehicle the best directional stability characteristics when loaded and driven. The caster setting is not related to tire wear.
