Transmission Fluid Drain and Refill: Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLV |
MERCON® LV |
- With the vehicle in NEUTRAL, position it on a hoist. JACKING AND LIFTING .
- Remove the transmission fluid drain plug and allow the transmission fluid to drain.
- Install the transmission fluid drain plug.
- Tighten to 9 Nm (80 lb-in).

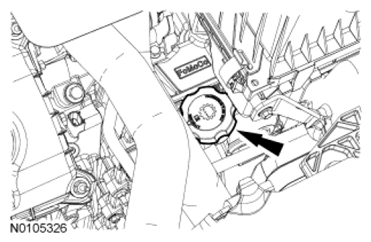

- Remove the transmission fluid level indicator.

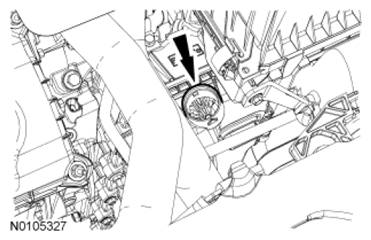

- If the transaxle was removed and disassembled, fill the transaxle with 6.2L (6.5 qt) of clean transmission fluid. If the main control cover was removed for in-vehicle repair, fill the transaxle with 4.3L (4.5 qt) of clean transmission fluid.
- Start the engine and let it run for 3 minutes. Move the range selector lever into each gear position and allow engagement for a minimum of ten seconds. Check the transmission fluid level by installing and removing the transmission fluid level indicator. When installing the transmission fluid level indicator, be sure it is seated and rotate it clockwise to the locked position. Adjust the transmission fluid level.
- Correct transmission fluid level at normal operating temperature 82°C-93°C (180°F-200°F).
- Low transmission fluid level.
- High transmission fluid level.
NOTE:
If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transaxle will need to be overhauled.
