Transfer Shaft and Gear: Disassembly

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the transfer shaft bearings for damage or excessive wear. Install new if necessary.

Fig 1: Locating Transfer Shaft Bearings
Courtesy of FORD MOTOR CO.

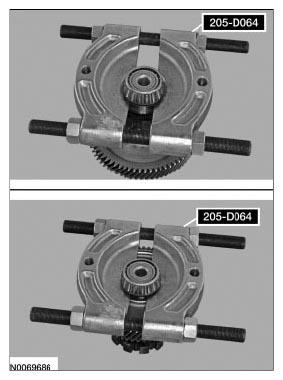

Install the Bearing Puller 205-D064 on the bearing.

Fig 2: Installing Bearing Puller 205-D064 On Bearing
Courtesy of FORD MOTOR CO.

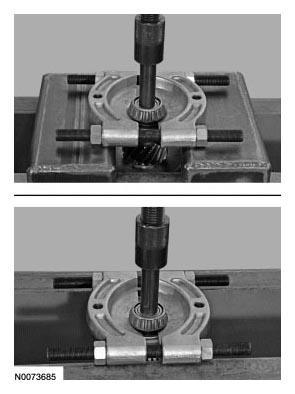

Using a suitable press, remove bearings from the transfer shaft assembly.

Fig 3: Removing Bearings From Transfer Shaft Assembly
Courtesy of FORD MOTOR CO.

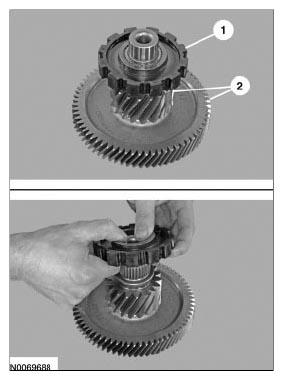

Inspect the transfer shaft assembly for damage.
1. Inspect the park pawl wheel for damage and install new, if necessary.
2. Inspect the transfer shaft and transfer shaft input gear for damage and install new, if necessary.

  Fig 4: Identifying Transfer Shaft And Transfer Shaft Input Gear
  Courtesy of FORD MOTOR CO.
