Transfer Shaft and Gear: Assembly

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park pawl wheel on the transfer shaft.
    Fig 1: Installing Park Pawl Wheel On Transfer Shaft
    G06076273Courtesy of FORD MOTOR CO.
  2. Using the Differential Bearing Installer and Guide 307-587 (307-587/2 and 307-587/3) and a press, install new transfer shaft bearings on the transfer shaft assembly.

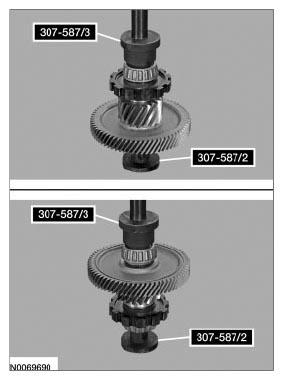

    Fig 2: Installing Transfer Shaft Bearings On Transfer Shaft Assembly
    G06068429Courtesy of FORD MOTOR CO.
