Solenoid Body Assembly: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

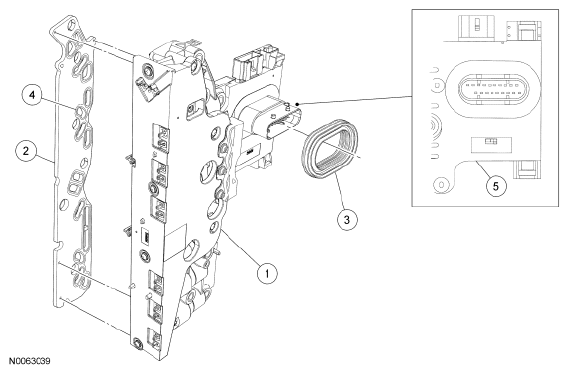

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
7Z369 |
Solenoid body |
| 2 |
7H200 |
Solenoid body filter |
| 3 |
7B329 |
Seal - solenoid body electrical connector |
| 4 |
- |
Solenoid body filter screen |
| 5 |
- |
Leadframe area |
