Solenoid Body Assembly: Disassembly

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The solenoid body should be handled with care or damage to the solenoid body may occur.

NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.

NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.

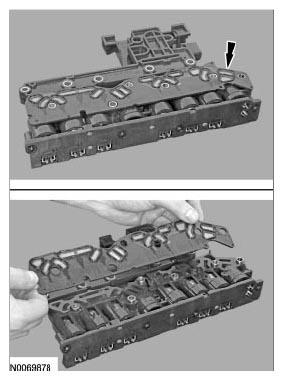

Fig 1: Locating Solenoid Body Filter Assembly

Courtesy of FORD MOTOR CO.

Remove the solenoid body filter assembly by pulling it straight up from the alignment tabs. Discard the filter.
Remove and discard the solenoid body assembly electrical connector seal.

Fig 2: Discarding Solenoid Body Assembly Electrical Connector Seal
Courtesy of FORD MOTOR CO.
Clean and inspect the solenoid body assembly for damage and install new if necessary.

Fig 3: Identifying Solenoid Body Assembly
Courtesy of FORD MOTOR CO.
