Solenoid Body Assembly: Assembly
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new solenoid body assembly electrical connector seal.

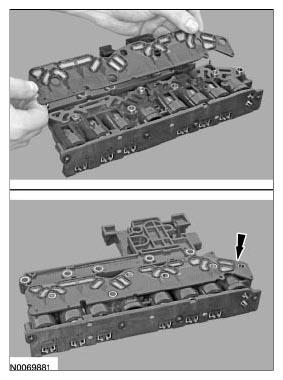

- Install a new solenoid body filter assembly by pushing it straight down onto the alignment tabs.
NOTE:
Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
NOTE:
Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
NOTE:
Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.
