Main Control Valve Body: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

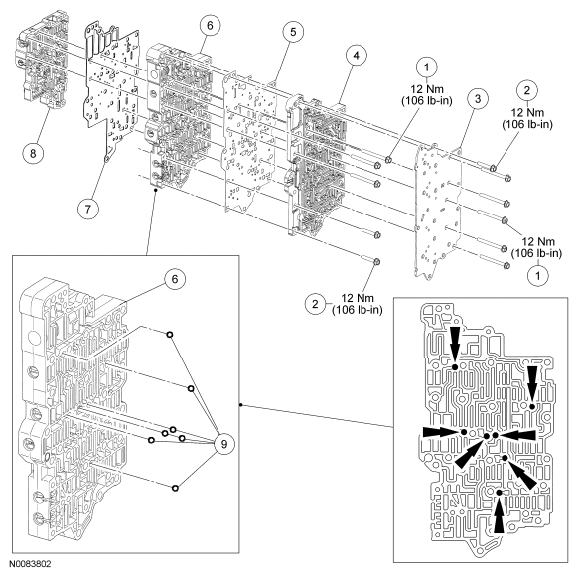

Fig 1: Main Control Valve Body Parts With Torque Specifications
G06076314Courtesy of FORD MOTOR CO.
