Transaxle Cooling
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

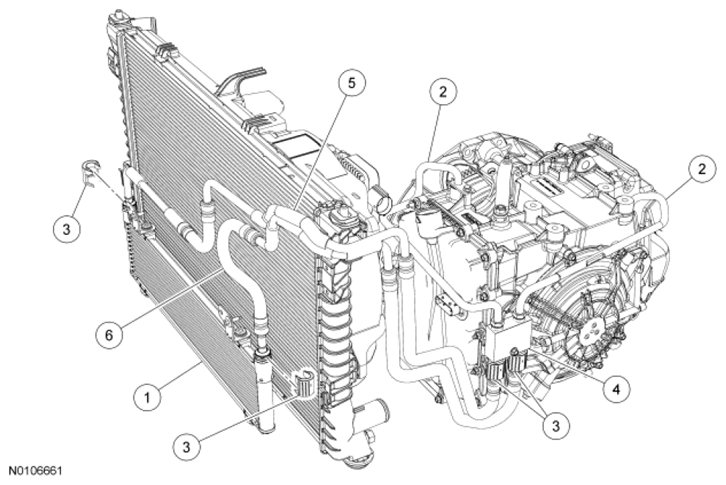

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | Transmission fluid cooler |
| 2 | 7R081 | Transmission fluid cooler tube assembly (includes 7H322) |
| 3 | 7Z465 | Transmission fluid cooler tube secondary latches |
| 4 | 7H322 | Transmission fluid thermal bypass valve (part of 7R081) |
| 5 | 7C410 | Transmission fluid cooler inlet tube |
| 6 | 7B028 | Transmission fluid cooler return tube |
When internal wear or damage has occurred in the transaxle, metal particles, clutch plate material or band material may have been carried into the torque converter and transmission fluid cooler. These contaminants are a major cause of recurring transaxle troubles and must be removed from the system before the transaxle is put back into use. Refer to TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING .
