Manual LOW Position and 1st Gear Below 5 km/h (3 MPH): Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

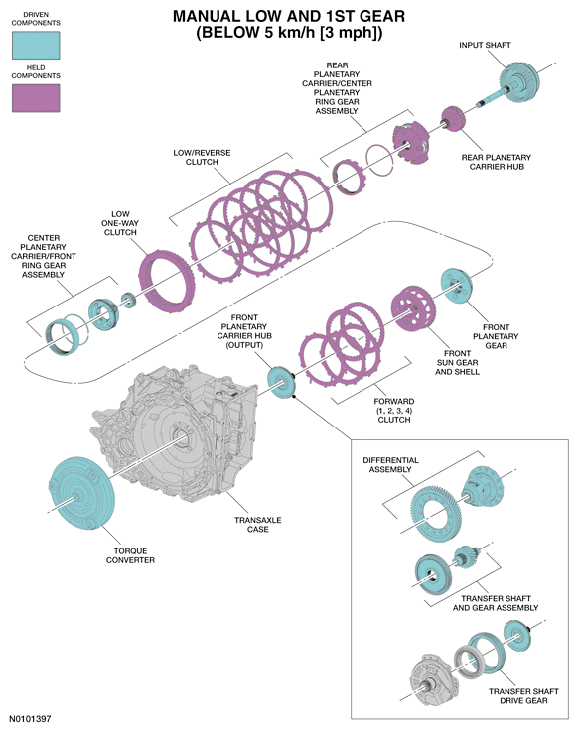

Fig 1: Identifying 1st Gear And Transaxle Case Components

Courtesy of FORD MOTOR CO.

NOTE: The transaxle operates differently in first gear above and below 5 km/h (3 MPH). For transaxle operation above 5 km/h (3 MPH), refer to 1ST GEAR ABOVE 5 KM/H (3 MPH) .
