Section 1959 (Automatic Transmission - Automatic Transaxle/Transmission)
>>
Description And Operation
>>
Mechanical Components and Functions
>>
Front Planetary Carrier Hub (Output Hub)
>>
Front Planetary Carrier Hub Cutaway View
Front Planetary Carrier Hub Cutaway View
WARNING:
This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

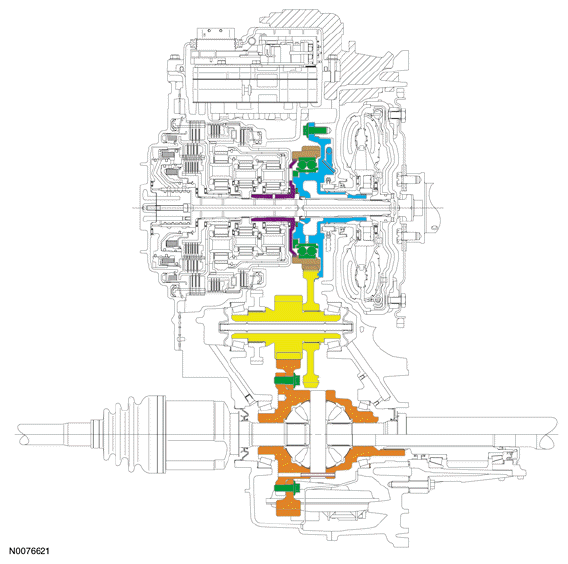

Fig 1: Identifying Front Planetary Carrier Hub Cutaway View
Courtesy of FORD MOTOR CO.
