Differential Cutaway View

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

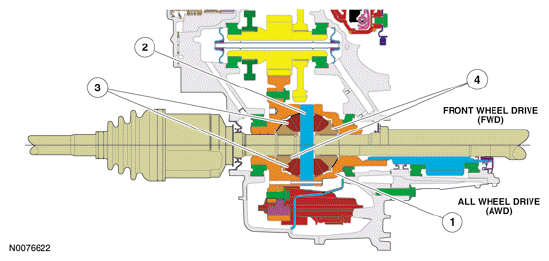

Fig 1: Identifying Differential Cutaway View
G06068223Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 4207 Differential housing
2 - Pinion shaft
3 - Pinion gears
4 - Side gears
