Major Components

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

This transaxle has the following major components:

Case with torque converter housing
Two drive clutches:
- Direct clutch
- Overdrive clutch
Four brake clutches:
- Forward clutch
- Low one-way clutch
- Low/reverse clutch
- Intermediate clutch
Three planetary gearsets:
- Front
- Center
- Rear
Final drive gearset:
- Transfer shaft drive gear
- Transfer shaft and gear assembly
- Differential ring gear
Differential
Pump and filter assembly
Main control:
- Valve body assembly
- Solenoid body assembly

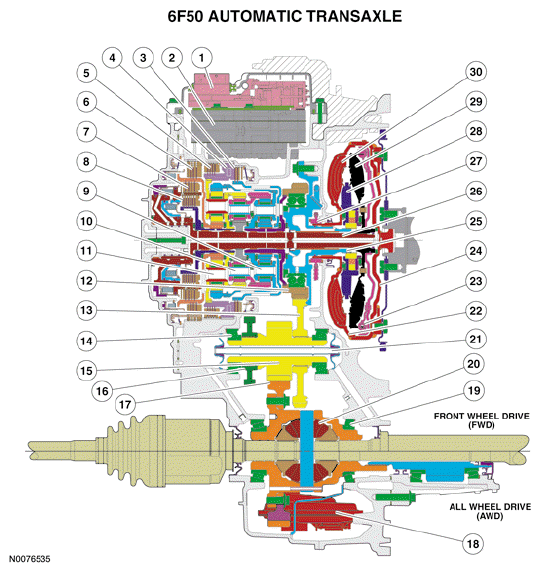

  Fig 1: Identifying 6F50 Automatic Transaxle Components Location
  Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7Z369	Solenoid body
2	7A100	Valve body
3	-	Forward clutch (clutch brake 1, 2, 3, 4)
4	7A089	Low One-Way Clutch (OWC)
5	-	Low/reverse clutch (clutch brake low/reverse)
6	-	Intermediate clutch (clutch brake 2, 6)
7	-	Direct clutch (drive clutch 3, 5, R)
8	-	Overdrive (O/D) clutch (drive clutch 4, 5, 6)
9	7D491	Front planetary assembly
10	7D491	Center planetary assembly
11	7D491	Rear planetary assembly
12	7F465	Differential transfer drive gear
13	7H349	Differential transfer driven gear
14	-	Transfer shaft roller bearing and cup
15	7H346	Differential drive pinion gear
16	7A233	Park gear
17	7F343	Differential ring gear
18	7A098	Fluid filter
19	4221	Differential roller bearing and cup
20	4207	Differential carrier gear and case assembly
21	7A209	Differential lube tube
22	7902	Torque converter
23	-	Torque Converter Clutch (TCC) (part of 7902)
24	-	Torque converter cover (part of 7902)
25	-	Support assembly (converter reactor) (part of 7902)
26	7G384	Turbine/input shaft
27	7G249	Chain and sprocket pump drive
28	-	Reactor (part of 7902)
29	-	Turbine (part of 7902)
30	-	Impeller (part of 7902)
