Transmission Fluid Level Indicator
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

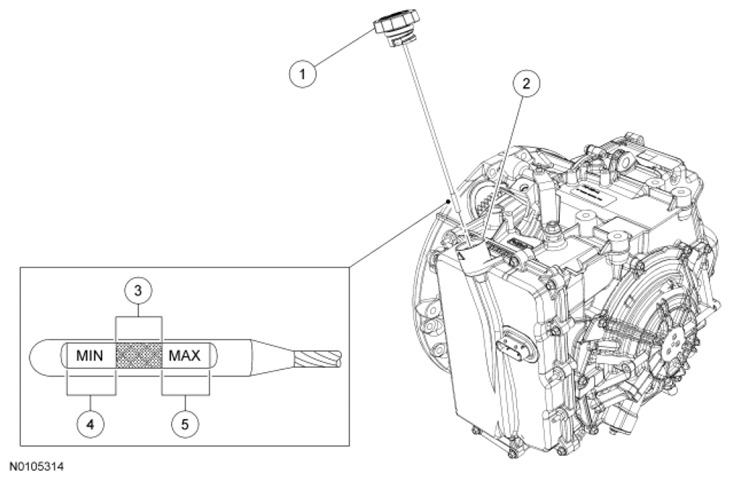

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
7A020 |
Transmission fluid level indicator |
| 2 |
7G004 |
Main control cover assembly |
| 3 |
- |
Correct transmission fluid level at normal operating temperature 82°C-93°C (180°F-200°F) |
| 4 |
- |
Low transmission fluid level |
| 5 |
- |
High transmission fluid level |
