Main Control Valve Body

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

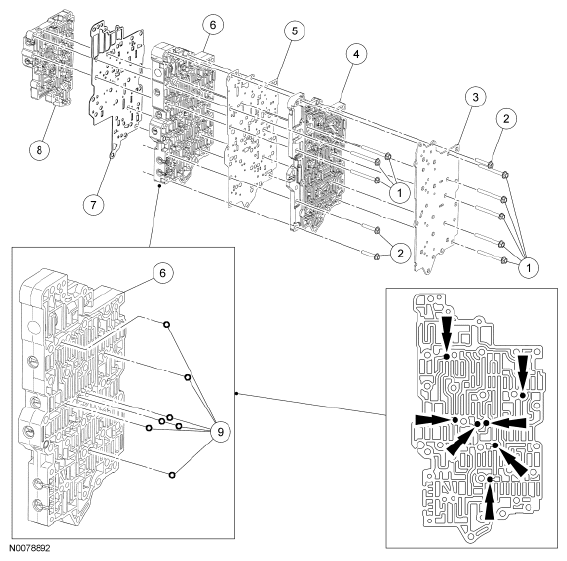

Fig 1: Identifying Main Control Valve Body Parts
G06068244Courtesy of FORD MOTOR CO.
