Main Control Components

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

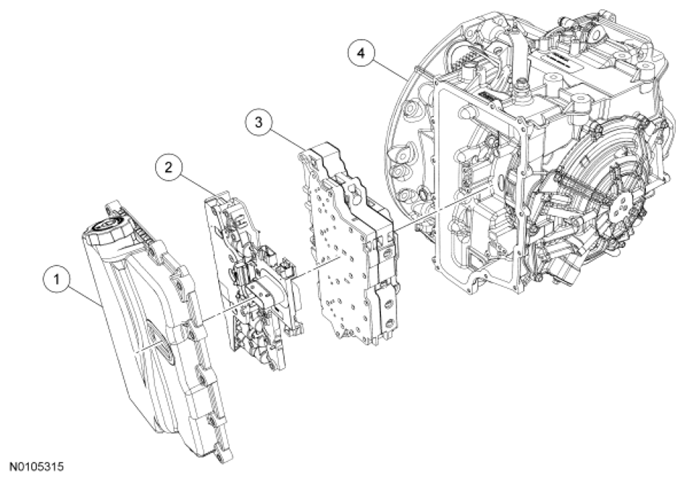

Fig 1: Identifying Main Control Components
G06502219Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7G004 Main control cover assembly
2 7Z369 Solenoid body
3 7A100 Main control valve body
4 7005 Transaxle case
