Cylinder Head - RH: Material

All vehicles

1. Remove the RH camshafts. For additional information, refer to CAMSHAFT .
2. If equipped, remove the heat shield and disconnect the block heater electrical connector.
   • Remove the block heater wiring harness from the engine.
     Fig 1: Locating Heat Shield

     Courtesy of FORD MOTOR CO.
3. Disconnect the RH Heated Oxygen Sensor (HO2S) electrical connector.
   Fig 2: Locating RH Heated Oxygen Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.
4. Disconnect the RH Camshaft Position (CMP) sensor electrical connector.
   Fig 3: Locating RH Camshaft Position (CMP) Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.
5. Remove the bolt and the ground cable from the RH cylinder.
   Fig 4: Locating Ground Cable Bolts

   Courtesy of FORD MOTOR CO.
6. Disconnect the 6 fuel injector electrical connectors (3 shown in illustration).
   Fig 5: Locating Fuel Injector Electrical Connectors

   Courtesy of FORD MOTOR CO.
7. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
   Fig 6: Locating Cylinder Head Temperature Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.
8. Disconnect the LH Catalyst Monitor Sensor (CMS) electrical connector.
   Fig 7: Locating LH Catalyst Monitor Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.
9. Remove the 2 LH catalytic converter bracket bolts.
   Fig 8: Locating LH Catalytic Converter Bracket Bolts

   Courtesy of FORD MOTOR CO.
10. Remove the 4 nuts (3 shown in illustration) and the LH catalytic converter.
    • Discard the nuts and the gasket.
      Fig 9: Locating LH Catalytic Converter Nuts

      Courtesy of FORD MOTOR CO.
11. Remove the LH cylinder block drain plug.
    • Allow coolant to drain from the cylinder block.
      Fig 10: Locating LH Cylinder Block Drain Plug

      Courtesy of FORD MOTOR CO.

    All-Wheel Drive (AWD) vehicles

12. Remove the 2 RH catalytic converter bracket bolts.
    Fig 11: Locating RH Catalytic Converter Support Bracket Bolts

    Courtesy of FORD MOTOR CO.

    All vehicles

13. Remove the 4 nuts and the RH catalytic converter.
    • Discard the nuts and the gasket.
      Fig 12: Locating RH Catalytic Converter Nuts

      Courtesy of FORD MOTOR CO.
14. Remove the RH cylinder block drain plug or, if equipped, the block heater.
    • Allow coolant to drain from the cylinder block.
      Fig 13: Locating RH Cylinder Block Drain Plug

      Courtesy of FORD MOTOR CO.
15. Remove the 3 bolts and the RH exhaust manifold heat shield.
    Fig 14: Locating RH Exhaust Manifold Heat Shield Bolts

    Courtesy of FORD MOTOR CO.
16. Remove the 6 nuts and the RH exhaust manifold.
    • Discard the nuts and exhaust manifold gaskets.
      Fig 15: Locating RH Exhaust Manifold Nuts

      Courtesy of FORD MOTOR CO.
17. Clean and inspect the RH exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
18. Remove and discard the 6 RH exhaust manifold studs.
    Fig 16: Locating RH Exhaust Manifold Studs

    Courtesy of FORD MOTOR CO.

    Engines equipped with early build RH timing chain guides

19. Remove the 2 bolts and the RH primary timing chain guide.
    Fig 17: Locating RH Primary Timing Chain Guide Bolts

    Courtesy of FORD MOTOR CO.

    Engines equipped with late build/replacement RH timing chain guides

20. Remove the 2 bolts and the RH primary timing chain guide.
    Fig 18: Locating RH Primary Timing Chain Guide Bolts

    Courtesy of FORD MOTOR CO.

    All vehicles

21. Remove the 2 bolts and the RH secondary timing chain tensioner.
    Fig 19: Locating RH Secondary Timing Chain Tensioner Bolts

    Courtesy of FORD MOTOR CO.
22. Remove the 2 bolts and the engine lifting eye.

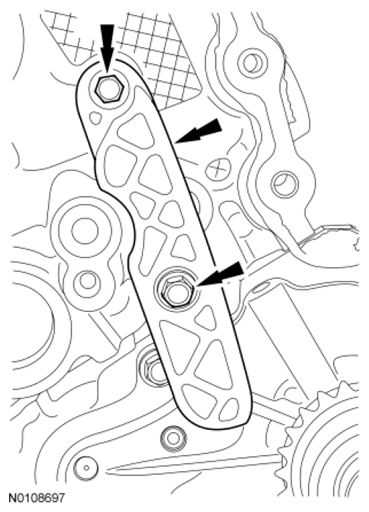

    Fig 20: Locating Engine Lifting Eye With Bolts

    Courtesy of FORD MOTOR CO.
NOTE: Index-mark the location of the bracket on the cylinder head for installation.
Fig 21: Locating Upper Intake Manifold Bracket Bolt
Courtesy of FORD MOTOR CO.
23. Remove the bolt and the upper intake manifold bracket.
24. Remove the bolt and the RH CMP  sensor.
    Fig 22: Locating RH CMP Sensor Bolt

    Courtesy of FORD MOTOR CO.
25. Remove the 4 bolts and the fuel rail and injectors as an assembly.
    Fig 23: Locating Fuel Rail Bolts

    Courtesy of FORD MOTOR CO.
26. Remove the 3 thermostat housing-to-lower intake manifold bolts.
    • Remove the thermostat housing and discard the gasket and O-ring seal.
      Fig 24: Locating Thermostat Housing-To-Lower Intake Manifold Bolts

      Courtesy of FORD MOTOR CO.
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
27. Remove the 10 bolts and the lower intake manifold.
    • Discard the gaskets.
      Fig 25: Locating Lower Intake Manifold Bolts

      Courtesy of FORD MOTOR CO.
28. Disconnect and remove the CHT  sensor jumper harness.
    Fig 26: Locating CHT Sensor Jumper Harness

    Courtesy of FORD MOTOR CO.
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
Fig 27: Locating Valve Tappets
Courtesy of FORD MOTOR CO.
29. Remove the valve tappets from the cylinder head.
30. Remove and discard the M6 bolt.
    Fig 28: Locating M6 Bolt

    Courtesy of FORD MOTOR CO.
NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
31. Remove and discard the 8 bolts from the cylinder head.
    • Remove the cylinder head.
    • Discard the cylinder head gasket.
      Fig 29: Locating Cylinder Head Bolts

      Courtesy of FORD MOTOR CO.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.
32. Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder heads and the cylinder block in the following sequence.
    1. Remove any large deposits of silicone or gasket material with a plastic scraper.
    2. Apply silicone gasket remover, following package directions, and allow to set for several minutes.
    3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
33. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
