Cylinder Head - LH: Material

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

All vehicles

Install a new gasket, the LH cylinder head and 8 new bolts. Tighten in the sequence shown in illustration in 5 stages:
- Stage 1: Tighten to 20 Nm (177 lb-in).
- Stage 2: Tighten to 35 Nm (26 lb-ft).
- Stage 3: Tighten 90 degrees.
- Stage 4: Tighten 90 degrees.
- Stage 5: Tighten 90 degrees.

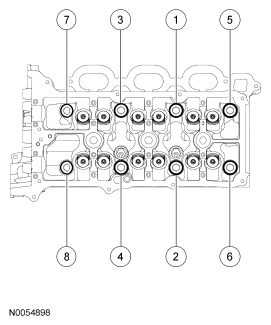

  Fig 1: Identifying LH Cylinder Head Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the bolt.
- Tighten to 10 Nm (89 lb-in).

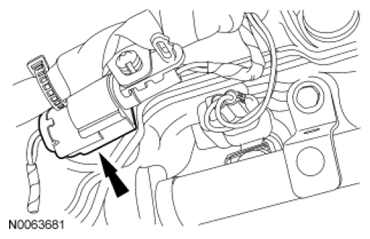

  Fig 2: Locating M6 Bolt
  Courtesy of FORD MOTOR CO.

NOTE: The valve tappets must be installed in their original positions.

NOTE: Coat the valve tappets with clean engine oil prior to installation.

Fig 3: Locating Valve Tappets

Courtesy of FORD MOTOR CO.

Install the valve tappets.
Install the LH secondary timing chain tensioner and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 4: Locating LH Secondary Timing Chain Tensioner Bolts
  Courtesy of FORD MOTOR CO.
Install the upper LH primary timing chain guide and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 5: Locating Upper LH Primary Timing Chain Guide With Bolts
  Courtesy of FORD MOTOR CO.
Install LH Camshaft Position (CMP) sensor and the bolt.
- Tighten to 10 Nm (89 lb-in).

  Fig 6: Locating LH CMP Sensor
  Courtesy of FORD MOTOR CO.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

Using new gaskets, install the lower intake manifold and the 10 bolts.
- Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).

  Fig 7: Identifying Intake Manifold Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Using a new gasket and O-ring seal, install the thermostat housing and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 8: Locating Thermostat Housing-To-Lower Intake Manifold Bolts
  Courtesy of FORD MOTOR CO.

NOTE: Use O-ring seals that are made of special fuel-resistant material. The use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.

NOTE: The upper and lower O-ring seals are not interchangeable.

Install new fuel injector O-ring seals.
- Remove the retaining clips and separate the fuel injectors from the fuel rail.
- Remove and discard the O-ring seals.
- Install new O-ring seals and lubricate with clean engine oil.
- Install the fuel injectors and the retaining clips onto the fuel rail.

  Fig 9: Locating Fuel Injector O-Ring Seals
  Courtesy of FORD MOTOR CO.
Install the fuel rail and injectors as an assembly and install the 4 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 10: Locating Fuel Rail Bolts
  Courtesy of FORD MOTOR CO.
Install the RH cylinder block drain plug or, if equipped, the block heater.
- Tighten to 40 Nm (30 lb-ft).

  Fig 11: Locating RH Cylinder Block Drain Plug
  Courtesy of FORD MOTOR CO.
Using a new gasket, install the RH catalytic converter and 4 new nuts.
- Tighten to 40 Nm (30 lb-ft).

  Fig 12: Locating RH Catalytic Converter Nuts
  Courtesy of FORD MOTOR CO.
All-Wheel Drive (AWD) vehicles
Install the 2 RH catalytic converter bracket bolts.
- Tighten the 4 catalytic converter nuts to 40 Nm (30 lb-ft).
- Tighten the 2 catalytic converter brackets to 20 Nm (177 lb-in).

  Fig 13: Locating RH Catalytic Converter Support Bracket Bolts
  Courtesy of FORD MOTOR CO.
All vehicles
Install the LH cylinder block drain plug.
- Tighten to 20 Nm (177 lb-in) plus an additional 180 degrees.

  Fig 14: Locating LH Cylinder Block Drain Plug
  Courtesy of FORD MOTOR CO.
Install 6 new LH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).

  Fig 15: Locating LH Exhaust Manifold Studs
  Courtesy of FORD MOTOR CO.

NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

Using a new gasket, install the LH exhaust manifold and 6 new nuts. Tighten in 2 stages in the sequence shown in illustration:
- Stage 1: Tighten to 20 Nm (177 lb-in).
- Stage 2: Tighten to 25 Nm (18 lb-ft).

  Fig 16: Identifying LH Exhaust Manifold Nuts
  Courtesy of FORD MOTOR CO.
Install the LH exhaust manifold heat shield and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 17: Locating LH Exhaust Manifold Heat Shield Bolts
  Courtesy of FORD MOTOR CO.
Using a new gasket, install the LH catalytic converter and 4 new nuts (3 shown in illustration).
- Tighten to 40 Nm (30 lb-ft).

  Fig 18: Locating LH Catalytic Converter Nuts
  Courtesy of FORD MOTOR CO.
Install the 2 LH catalytic converter bracket bolts.
- Tighten to 20 Nm (177 lb-in).

  Fig 19: Locating LH Catalytic Converter Bracket Bolts
  Courtesy of FORD MOTOR CO.
Install the generator, the bolt and the nut.
- Tighten to 47 Nm (35 lb-ft).

  Fig 20: Locating Generator Bolt And Nut
  Courtesy of FORD MOTOR CO.
Install the A/C compressor, the nut and the 2 bolts.
- Tighten to 25 Nm (18 lb-ft).

  Fig 21: Locating A/C Compressor Bolts And Nut
  Courtesy of FORD MOTOR CO.
Connect the Engine Oil Pressure (EOP) switch electrical connector and the wiring harness pin-type retainer.

Fig 22: Locating Engine Oil Pressure Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Attach the wiring harness retainer to the generator.

Fig 23: Locating Wiring Harness Retainer
Courtesy of FORD MOTOR CO.
Connect the generator electrical connector.

Fig 24: Locating Generator Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the generator B+ cable and install the nut.
- Tighten to 17 Nm (150 lb-in).

  Fig 25: Locating Generator B+ Cable
  Courtesy of FORD MOTOR CO.
Connect the A/C compressor electrical connector.

Fig 26: Locating A/C Compressor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the wiring harness retainer bolt on the rear of the LH cylinder head.
- Tighten to 10 Nm (89 lb-in).

  Fig 27: Locating Wiring Harness Retainer Bolt
  Courtesy of FORD MOTOR CO.
Connect the LH Catalyst Monitor Sensor (CMS) electrical connector.

Fig 28: Locating LH Catalyst Monitor Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the LH Heated Oxygen Sensor (HO2S) electrical connector.

Fig 29: Locating LH Heated Oxygen Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the LH CMP sensor electrical connector.

Fig 30: Locating LH Camshaft Position Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the Cylinder Head Temperature (CHT) sensor electrical connector.

Fig 31: Locating CHT Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the 6 fuel injector electrical connectors (3 shown in illustration).

Fig 32: Locating Fuel Injector Electrical Connectors
Courtesy of FORD MOTOR CO.
If equipped, install the block heater wiring harness onto the engine.
- Connect the block heater electrical connector and install the heat shield.

  Fig 33: Locating Heat Shield
  Courtesy of FORD MOTOR CO.
Install the LH camshafts. For additional information, refer to CAMSHAFT .
