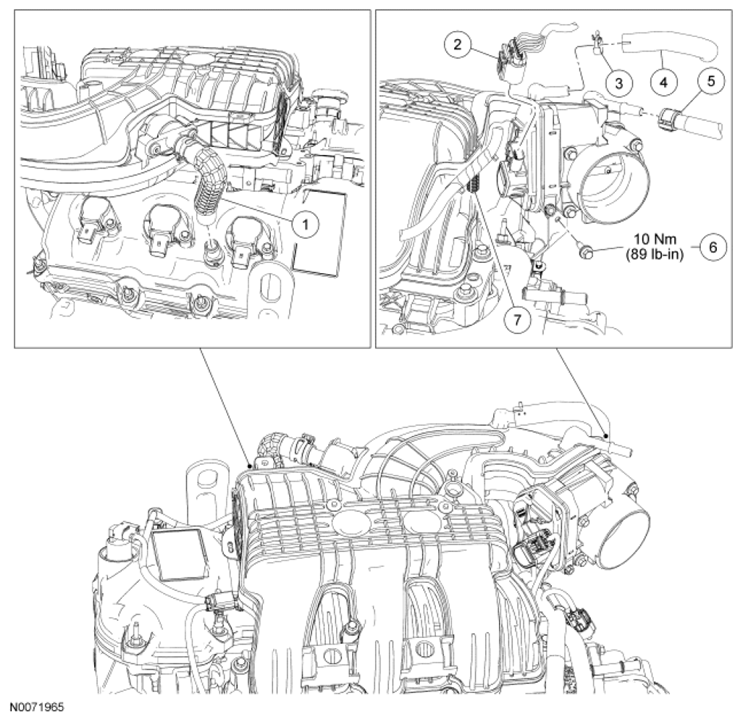

Upper Intake Manifold (View 1 of 2)
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K817 | PCV hose |
| 2 | 14A464 | Throttle Body (TB) electrical connector (part of 12C508) |
| 3 | CS16140 | Brake booster-to-intake manifold vacuum hose clamp |
| 4 | 6K817 | Brake booster-to-intake manifold vacuum hose |
| 5 | 9D661 | Evaporative Emission (EVAP)-to-intake manifold tube |
| 6 | W503274 | Upper intake manifold support bracket bolt |
| 7 | - | Engine control wiring harness retainer (part of 12C508) |
