Timing Drive Components: Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Engines equipped with late build/replacement RH timing chain guides

  1. Install the RH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

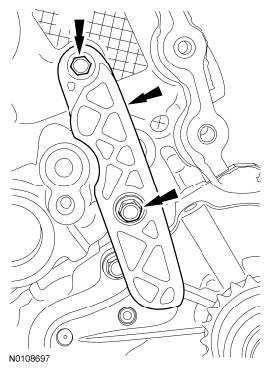

      Fig 1: Locating RH Primary Timing Chain Guide And Bolts
      G06281517Courtesy of FORD MOTOR CO.

    Engines equipped with early build RH timing chain guides

  2. Install the RH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 2: Locating RH Primary Timing Chain Guide Bolts
      G06063051Courtesy of FORD MOTOR CO.

      All vehicles

  3. NOTE: It is necessary to tilt the Camshaft Holding Tool toward the rear of the engine to access the rearmost secondary timing chain tensioner bolt.
  4. Install the RH secondary timing chain tensioner and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 3: Locating RH Secondary Timing Chain Tensioner Bolts
      G06062041Courtesy of FORD MOTOR CO.
  5. Assemble the RH VCT  assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
    • Align the colored links with the timing marks.
      Fig 4: Aligning Colored Links With Timing Marks
      G06062045Courtesy of FORD MOTOR CO.
  6. Position the RH secondary timing assembly onto the camshafts.
    Fig 5: Positioning RH Secondary Timing Assembly Onto Camshafts
    G06062046Courtesy of FORD MOTOR CO.
  7. Install the new VCT  bolt and new exhaust camshaft bolt and the original washer. Tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 10 Nm (89 lb-in).
    • Stage 4: Tighten 90 degrees.
      Fig 6: Locating Secondary Timing Chain And RH Exhaust Camshaft Sprocket
      G06062040Courtesy of FORD MOTOR CO.
  8. Remove the lockpin from the RH secondary timing chain tensioner.
    Fig 7: Locating Lockpin
    G06062048Courtesy of FORD MOTOR CO.
  9. NOTE: It is necessary to tilt the Camshaft Holding Tool toward the rear of the engine to access the rearmost secondary timing chain tensioner bolt.
  10. Install the LH secondary timing chain tensioner and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 8: Locating LH Secondary Timing Chain Tensioner Bolts
      G06073852Courtesy of FORD MOTOR CO.
  11. Assemble the LH VCT  assembly, the LH exhaust camshaft sprocket and the LH secondary timing chain.
    • Align the colored links with the timing marks.
      Fig 9: Aligning Colored Links With Timing Marks
      G06062050Courtesy of FORD MOTOR CO.
  12. Position the LH secondary timing assembly onto the camshafts.
    Fig 10: Locating LH Secondary Timing Assembly
    G06062051Courtesy of FORD MOTOR CO.
  13. Install the new VCT  bolt and new exhaust camshaft bolt and the original washer. Tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 10 Nm (89 lb-in).
    • Stage 4: Tighten 90 degrees.
      Fig 11: Locating Secondary Timing Chain And LH Exhaust Camshaft Sprocket
      G06062037Courtesy of FORD MOTOR CO.
  14. Remove the lockpin from the LH secondary timing chain tensioner.
    Fig 12: Locating Lockpin
    G06062053Courtesy of FORD MOTOR CO.
  15. Install the crankshaft timing chain sprocket.
    Fig 13: Locating Crankshaft Timing Chain Sprocket
    G06062034Courtesy of FORD MOTOR CO.
  16. Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.
    Fig 14: Aligning Timing Marks On VCT Assemblies And Crankshaft Sprocket
    G06062055Courtesy of FORD MOTOR CO.
  17. Install the upper LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 15: Locating Upper LH Primary Timing Chain Guide With Bolts
      G06063046Courtesy of FORD MOTOR CO.
  18. Install the lower LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 16: Locating Primary Timing Chain Tensioner Arm
      G06062032Courtesy of FORD MOTOR CO.
  19. Install the primary timing chain tensioner arm.
    Fig 17: Locating Primary Timing Chain Tensioner Arm
    G06062031Courtesy of FORD MOTOR CO.
  20. Reset the primary timing chain tensioner.
    • Rotate the lever counterclockwise.
    • Using a soft-jawed vise, compress the plunger.
    • Align the hole in the lever with the hole in the tensioner housing.
    • Install a suitable lockpin.
      Fig 18: Aligning Hole In Lever With Hole In Tensioner Housing
      G06062059Courtesy of FORD MOTOR CO.
  21. NOTE: It may be necessary to rotate the crankshaft slightly to remove slack from the timing chain and install the tensioner.
  22. Install the primary tensioner and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    • Remove the lockpin.
      Fig 19: Locating Primary Tensioner Bolts
      G06063057Courtesy of FORD MOTOR CO.

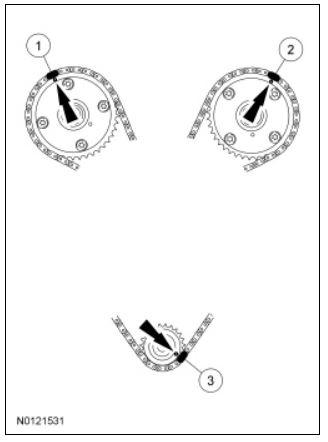

  23. As a post-check, verify correct alignment of all timing marks.
    • There are 38 links in between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
    • There are 27 links in between LH intake VCT assembly colored link (2) and the crankshaft sprocket link (3).
  24. Fig 20: Verifying Correct Alignment Of All Timing Marks
    G00572874Courtesy of FORD MOTOR CO.
  25. Inspect the VCT  housing seals for damage and replace as necessary.
    Fig 21: Locating VCT Housing Seals
    G06063041Courtesy of FORD MOTOR CO.
  26. NOTE: Make sure the dowels on the Variable Camshaft Timing (VCT) housing are fully engaged in the cylinder head prior to tightening the bolts. Failure to follow this process will result in severe engine damage.
  27. Install the LH VCT  housing and the 3 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      Fig 22: Identifying LH VCT Housing Bolts Tightening Sequence
      G06063060Courtesy of FORD MOTOR CO.
  28. NOTE: Make sure the dowels on the Variable Camshaft Timing (VCT) housing are fully engaged in the cylinder head prior to tightening the bolts. Failure to follow this process will result in severe engine damage.
  29. Install the RH VCT  housing and the 3 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      Fig 23: Identifying RH VCT Housing Bolts Tightening Sequence
      G06062064Courtesy of FORD MOTOR CO.
  30. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
