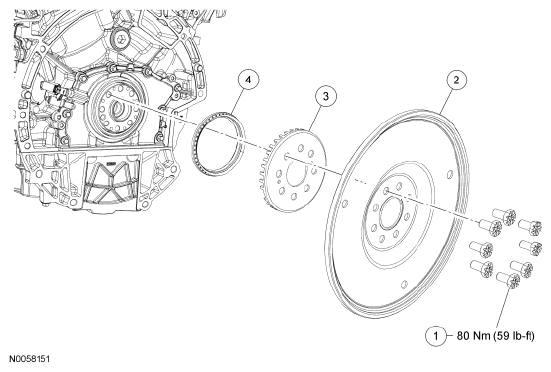

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W701559 |
Flexplate bolt (8 required) |
| 2 |
6375 |
Flexplate |
| 3 |
12A227 |
Crankshaft sensor ring |
| 4 |
6701 |
Crankshaft rear seal |
- For additional information, refer to the appropriate procedure(s).
