Air Spring Solenoid Valve: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
Material
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |

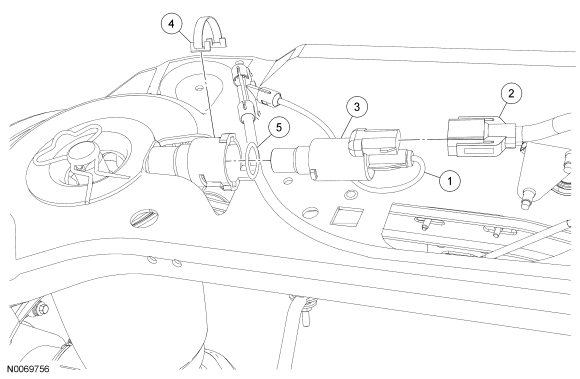

| Item | Part Number | Description |
|---|---|---|
| 1 | 5A897 | Air tube |
| 2 | 14A435 | Electrical connector (part of wiring harness 14A435) |
| 3 | 5A891 | Air spring solenoid valve |
| 4 | 5308 | Air spring solenoid valve retainer |
| 5 | - | O-ring (part of 5A891) |
