Power Steering Fluid Reservoir: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
MERCON® V Automatic Transmission Fluid
XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)
MERCON® V

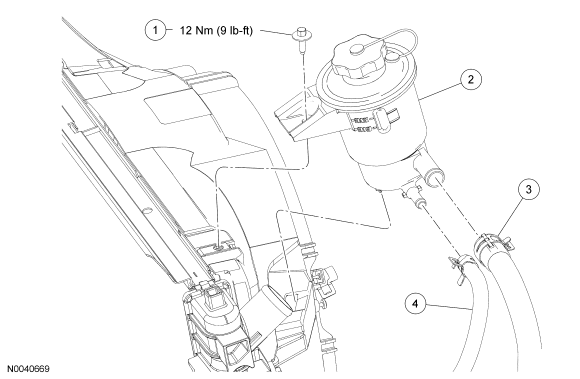

Fig 1: Exploded View Of Power Steering Fluid Reservoir With Torque Specifications
GF0014232Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N606676 Power steering fluid reservoir bolt
2 3E764 Power steering fluid reservoir
3 3691 Power steering pump supply hose
4 3A713A Return hose
