Seat Control Switch - Redundant Front Passenger Fore/Aft, Signature L and Executive L: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

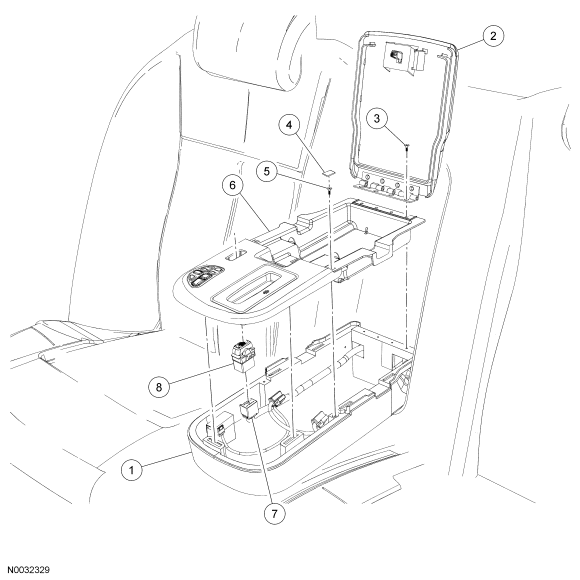

| Item | Part Number | Description |
|---|---|---|
| 1 | 67112 | Armrest |
| 2 | 06024 | Armrest tray door assembly |
| 3 | - | Screw (4 required, part of 06024) |
| 4 | - | Rubber bumper (2 required, part of 67112) |
| 5 | - | Screw (2 required, part of 67112) |
| 6 | - | Armrest tray (part of 67112) |
| 7 | - | Electrical connector (part of 18A919) |
| 8 | 14A701 | Redundant seat control switch |
