Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Remove the steering wheel. For additional information, refer to STEERING COLUMN .
  2. Remove the steering column multi-function switch. For additional information, refer to STEERING COLUMN SWITCHES .
  3. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  4. Remove the upper and lower steering column shrouds.
  5. Remove the cowl trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  6. From behind the cowl trim panels, disconnect the electrical connectors.
  7. Remove the lower instrument panel insulator.
    Fig 1: Locating Right Lower Instrument Panel Insulator
    G03957970Courtesy of FORD MOTOR CO.
  8. Remove the front floor console. For additional information, refer to CONSOLE - FRONT, FLOOR .
  9. Remove the floor shifter. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .

    10. Five Hundred, Montego

  10. Remove the 2 instrument panel center finish panel screws.

    11. All vehicles

  11. Remove the instrument panel center finish panel.
    • Disconnect the electrical connectors.
  12. Remove the 2 audio unit screws.
  13. Remove the audio unit.
    • Disconnect the audio unit electrical connectors and the antenna cable.
  14. Detach the instrument panel side panels.
  15. Remove the A-pillar trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  16. Remove the steering column cover.
  17. Position the hood release handle aside.
    • Remove the 2 screws and position the handle aside.
  18. Remove the headlamp switch.
  19. Remove the glove compartment door.
    • Disengage the glove compartment dampener from the keyway.
    • Remove the glove compartment door.

    20. Freestyle

  20. Remove the passenger side air bag. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
  21. Remove the passenger assist handle.
    • Through the glove compartment opening, remove the 3 screws.

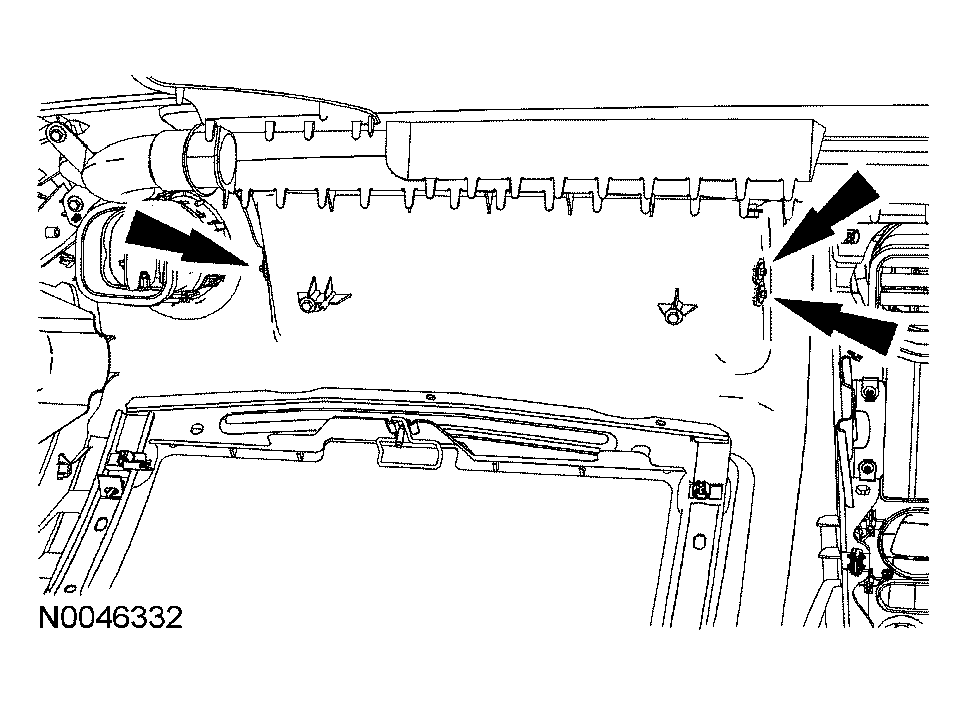

      Fig 2: Removing Passenger Assist Handle Screw
      G03989186Courtesy of FORD MOTOR CO.

    22. Five Hundred, Montego

  22. Reposition the passenger side air bag.
    1. Through the glove compartment opening, remove the 6 passenger side air bag nuts.
    2. Reposition the passenger side air bag.
  23. Detach the cross-car panel.
    • Disconnect the PAD indicator electrical connector.

    24. All vehicles

  24. Disconnect the LH side main wiring harness electrical connectors.
    CAUTION: To avoid damaging the instrument panel upper section, this step requires the help of an assistant. Do not bend or crimp the instrument panel upper section upon removal.
  25. Remove the instrument panel upper section.
    • Remove the 8 screws.
      • Remove 1 screw from each side at the upper portion of the panel.
      • Remove 3 screws from each side at the lower portion of the panel and remove the instrument panel upper section.
  26. To install, reverse the removal procedure.
