Adjustable Pedal Potentiometer Connector - C2090
Adjustable Pedal Potentiometer Connector - C2090
WARNING:
This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

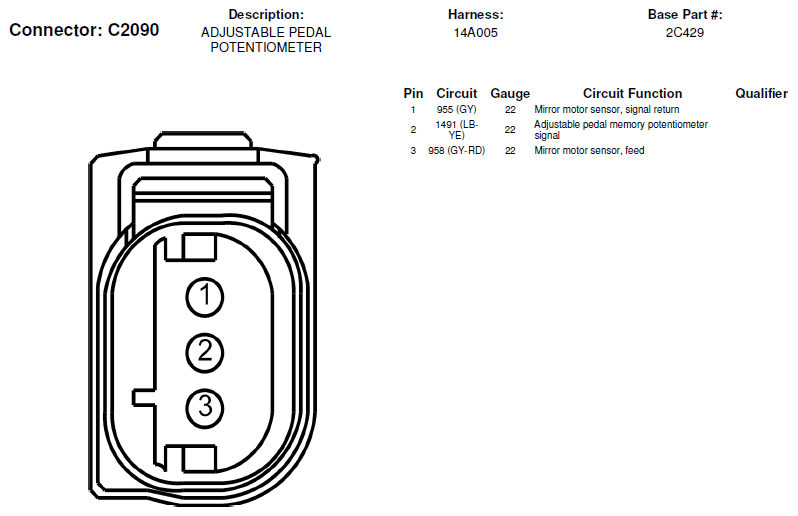

Fig 1: Adjustable Pedal Potentiometer Connector End View (C2090)
Courtesy of FORD MOTOR CO.
