Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 3 fender splash shield bolts.
    • To install, tighten to 5 Nm (44 lb-in).

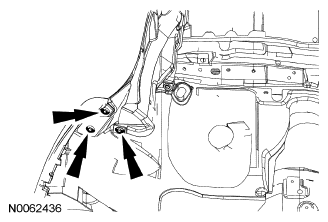

      Fig 1: Locating Fender Splash Shield Bolts
      G06099499Courtesy of FORD MOTOR CO.
  2. Remove the 7 fender splash shield pin-type retainers.

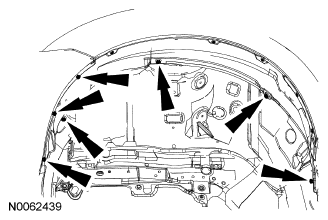

    Fig 2: Locating Fender Splash Shield Pin-Type Retainers
    G06099500Courtesy of FORD MOTOR CO.
  3. Remove the 6 fender splash shield screws.
    • To install, tighten to 5 Nm (44 lb-in).
  4. Remove the fender splash shield.
  5. To install, reverse the removal procedure.
