Degas Bottle: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

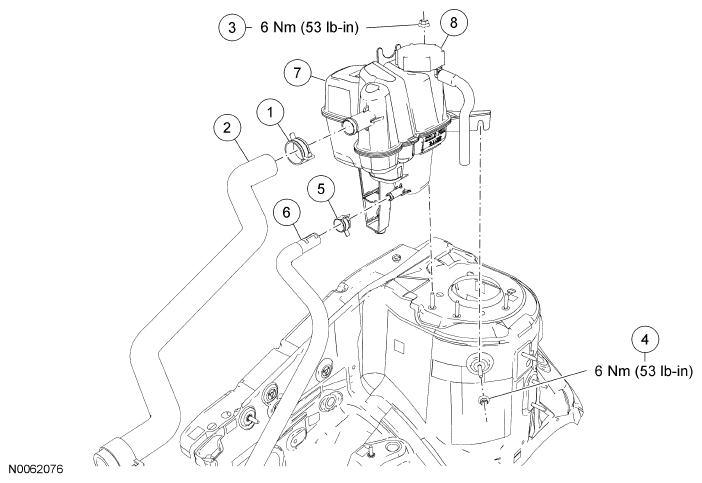

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W525961 | Radiator-to-degas bottle hose clamp |
| 2 | 8W005 | Radiator-to-degas bottle hose |
| 3 | W707142 | Degas bottle-to-fender nut |
| 4 | W707142 | Degas bottle-to-fender nut |
| 5 | W525953 | Degas bottle-to-radiator hose clamp |
| 6 | 8C633 | Degas bottle-to-radiator hose |
| 7 | 8A080 | Degas bottle |
| 8 | 8100 | Pressure relief cap |
