Ignition Lock Cylinder: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

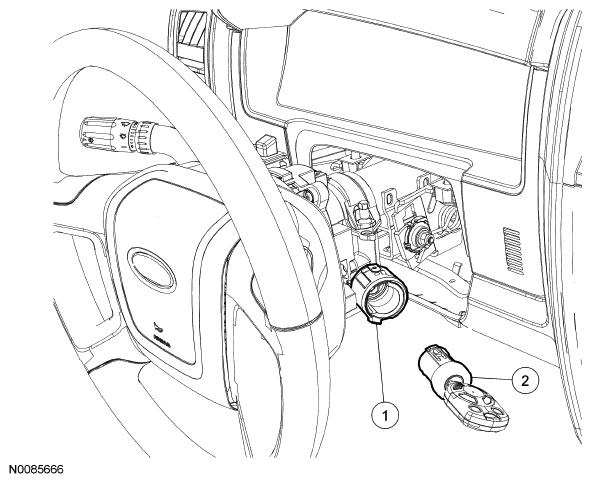

Fig 1: Identifying Ignition Lock Cylinder And Steering Column Lock Module
G06099895Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 3511 Steering column lock module
2 11582 Ignition lock cylinder
