Variable Camshaft Timing (VCT) Oil Control Solenoid: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

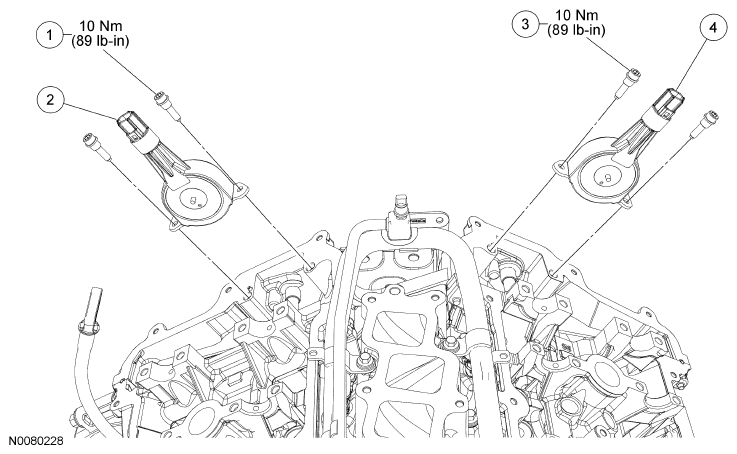

Fig 1: Variable Camshaft Timing (VCT) Oil Control Solenoid Replacement Components With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W713305 | Variable Camshaft Timing (VCT) oil control solenoid bolt (2 required) (part of 6B297) |
| 2 | 6B297 | VCT oil control solenoid |
| 3 | W713305 | VCT oil control solenoid bolt (2 required) (part of 6B297) |
| 4 | 6B297 | VCT oil control solenoid |
