Mass Air Flow (MAF) Sensor: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

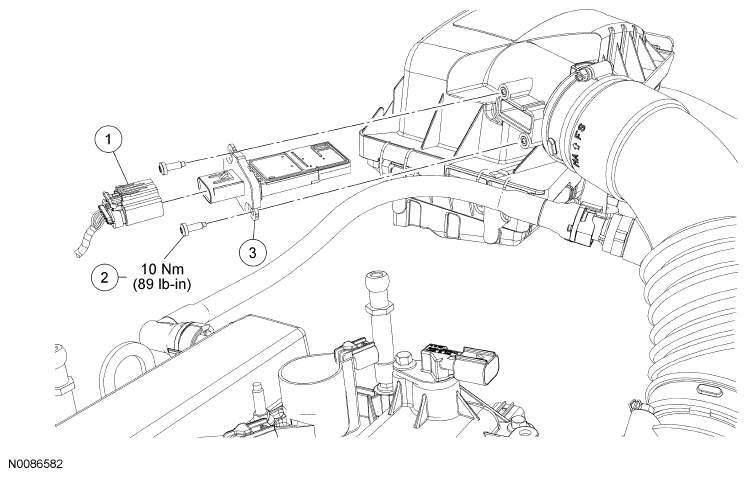

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
14A464 |
Mass Air Flow (MAF) sensor electrical connector (part of 12C508) |
| 2 |
W709287 |
MAF
sensor screw (2 required) |
| 3 |
12B579 |
MAF
sensor |
