Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown in illustration, RH similar.

Remove the 2 wiper pivot arm nuts.
- To install, tighten to 40 Nm (30 lb-ft).

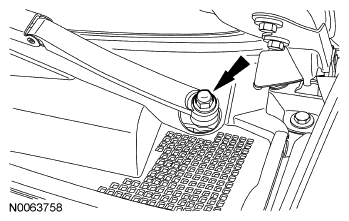

  Fig 1: Locating Wiper Pivot Arm Nut
  Courtesy of FORD MOTOR CO.

NOTE: A suitable 2 jaw puller may be necessary to remove the wiper arms.

Remove the LH and RH wiper pivot arms.
To install, reverse the removal procedure.
- Adjust the wiper pivot arms. For additional information, refer to WIPER BLADE AND PIVOT ARM ADJUSTMENT - WINDSHIELD .
