Door Check Arm
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

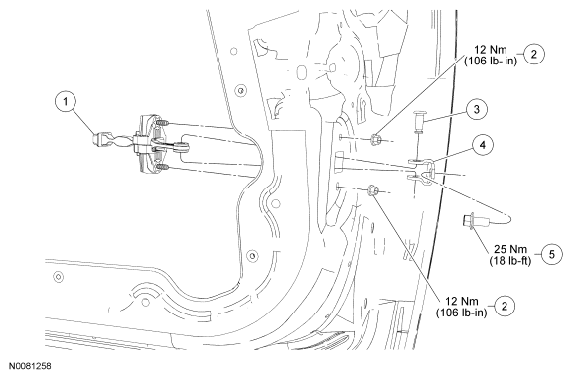

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 5423552 | Door check arm |
| 2 | W520111 | Door check arm-to-door nuts |
| 3 | - | Door check arm-to-check arm bracket (part of 5423552) |
| 4 | - | Door check arm bracket (part of 5423552) |
| 5 | W707375 | Door check arm-to-body bolt |
- Remove the door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Remove the door check arm-to-body bolt.
- To install, tighten to 25 Nm (18 lb-ft).
- Remove the door check arm-to-door nuts.
- To install, tighten to 12 Nm (106 lb-in).
- To install, reverse the removal procedure.
