Fusion, Milan

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH front shown, all others similar.

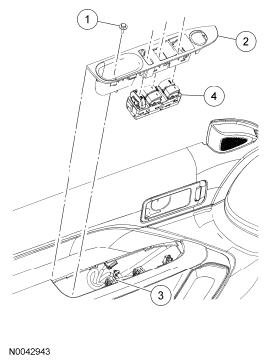

Fig 1: Identifying Window Control Switch - Fusion & Milan
G06259666Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 W703268 Screw
2 54266 Window control switch bezel
3 - Electrical connector (3 required)
4 14529 Window control switch
