Positive Crankcase Ventilation (PCV) Valve: Material
WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSSM2C930-A |

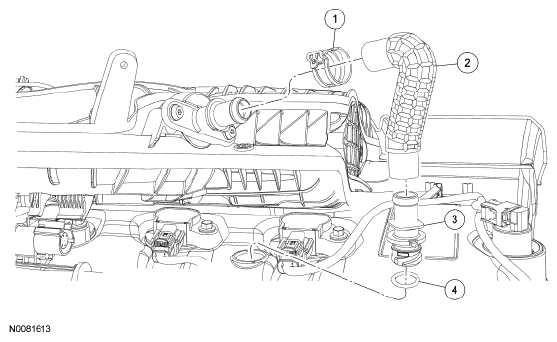

CRANKCASE VENTILATION (PCV) VALVE COMPONENTS CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Crankcase ventilation tube spring clamp (part of 6A664) |
| 2 | 6K817 | Crankcase ventilation tube |
| 3 | 6A666 | PCV valve |
| 4 | - | PCV valve O-ring seal (part of 6A666) |
