Rear Disc Brake Shield - Front Wheel Drive (FWD): Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

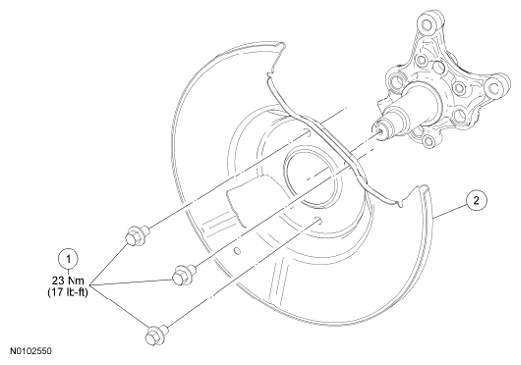

Fig 1: Brake Disc Shield & Brake Disc Shield Bolts With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	N500020	Brake disc shield bolts (3 required)
2	2K045 RH/2K046 LH	Brake disc shield
