Rear Brake Pads: Material
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION TABLE
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) | WSS-M6C62-A or WSSM6C65-A1 |
NOTE:
Front Wheel Drive (FWD) shown in illustration, All-Wheel Drive (AWD) similar.

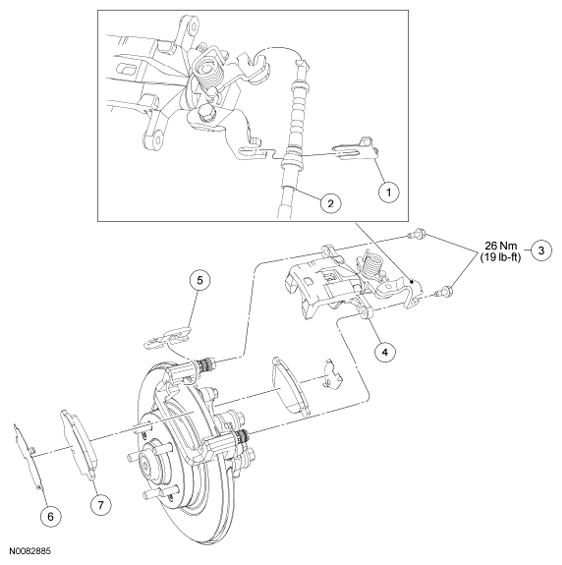

Fig 1: Parking Brake Cable Conduit Retaining Clip, Brake Caliper & Brake Pad Shim With Torque Specifications
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 2860 | Parking brake cable conduit retaining clip |
| 2 | 2A815 | Parking brake cable |
| 3 | - | Brake caliper guide pin bolts (part of 2386) |
| 4 | 2552 LH/2553 RH | Brake caliper |
| 5 | - | Brake pad slide clip (2 required) (part of 2200) |
| 6 | - | Brake pad shim (2 required) (part of 2200) |
| 7 | 2200 | Brake pad (2 required) |
