Wheel and Tire: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)
SPECIAL TOOL SPECIFICATION
| Digital Tire Pressure Gauge 204-354 |

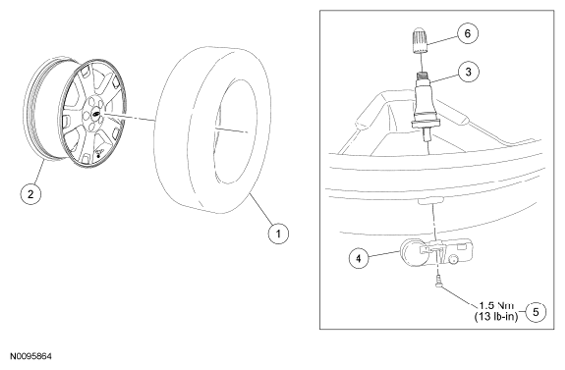

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 1508 | Tire |
| 2 | 1007 | Wheel |
| 3 | 1700 | Valve stem and screw (also part of 1A189) |
| 4 | 1A189 | Tire Pressure Monitoring System (TPMS) sensor (a new sensor assembly includes W714266 screw and 1700 valve stem and cap) |
| 5 | - | Valve stem-to- TPMS sensor screw (part of 1700) |
| 6 | 1A163 | Valve stem cap (also part of 1A189) |
