Cylinder Head: Assembly

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the Valve Stem Oil Seal Installer, install the valve stem seal.
    Fig 1: Installing Valve Stem Seal
    G06263654Courtesy of FORD MOTOR CO.
  2. Install the valve.
  3. Using the Valve Spring Compressors, install the valve spring, retainer and keys.

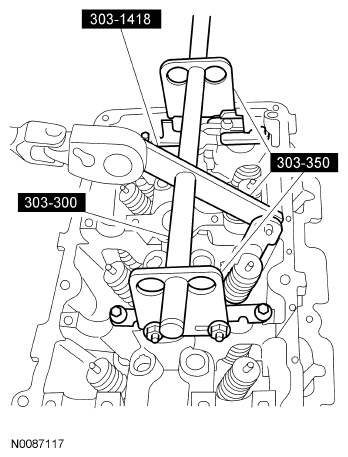

    Fig 2: Installing Keys, Retainer & Spring
    G06095806Courtesy of FORD MOTOR CO.
