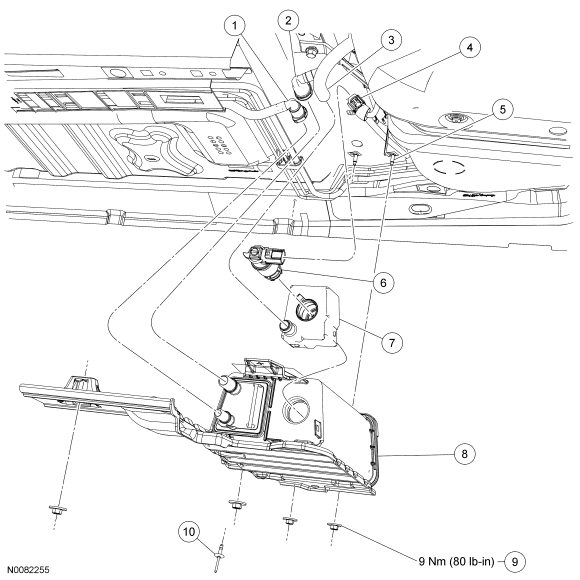

Evaporative Emission (EVAP) System Components - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel vapor tube-to-Evaporative Emission (EVAP) canister quick connect coupling (part of 9G700) |
| 2 | - | Fuel vapor tube assembly-to-EVAP canister quick connect coupling (part of 9C015) |
| 3 | - | Fresh air hose-to-dust separator |
| 4 | 14A464 | EVAP canister vent solenoid electrical connector |
| 5 | W711411 | EVAP canister J-clip mounting stud (3 required) |
| 6 | 9F945 | EVAP canister vent solenoid |
| 7 | 9G676 | Dust separator |
| 8 | 9E857 | EVAP canister |
| 9 | W711059 | EVAP canister nut (4 required) |
| 10 | W713467 | EVAP canister rivet |
- For additional information, refer to the procedures.
