Selector Lever Knob: Installation

WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with a TC switch

Route the TC switch wiring harness through the selector lever bezel and connect the TC switch electrical connector.

Fig 1: Identifying Connector

Courtesy of FORD MOTOR CO.

NOTE: Selector lever removed for clarity.

Position the selector lever bezel in place.
- Be sure the 4 tabs are locked in place.

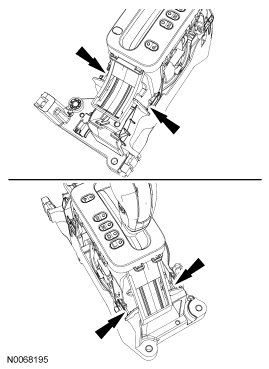

Fig 2: Identifying Tabs

Courtesy of FORD MOTOR CO.

All vehicles

Position the selector lever knob and knob bezel in place and install the screws.

Fig 3: Identifying Screws

Courtesy of FORD MOTOR CO.

Slide the lower selector lever knob bezel up and snap it into place.

Fig 4: Sliding Lower Selector Lever Knob Bezel Up

Courtesy of FORD MOTOR CO.

Vehicles equipped with a TC switch

Install the upper console panel.

Fig 5: Identifying Upper Console Panel

Courtesy of FORD MOTOR CO.

Install the selector lever bezel trim ring.

Fig 6: Identifying Selector Lever Bezel Trim Ring

Courtesy of FORD MOTOR CO.
