Console - Overhead
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

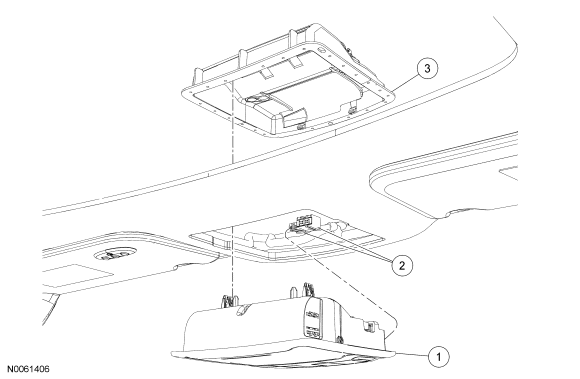

| Item |
Part Number |
Description |
| 1 |
519A70 |
Overhead console |
| 2 |
- |
Overhead console electrical connectors |
| 3 |
519K22 |
Overhead console bracket |
- Remove the overhead console.
- Pull downward on the overhead console.
- Disconnect the electrical connectors.
- To install, reverse the removal procedure.
