Console - Front, Floor: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

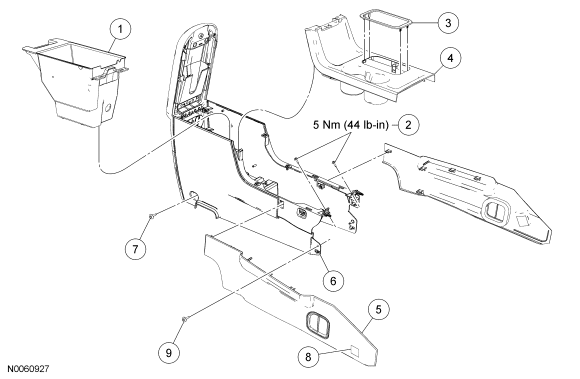

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Floor console storage bin |
| 2 | W505153 | Floor console-to-instrument panel screws (2 required) |
| 3 | 7E391 | Selector lever trim ring |
| 4 | 045A76 | Floor console finish panel |
| 5 | 04608 RH/ 04609 LH | Floor console trim panel |
| 6 | 045A36 | Floor console |
| 7 | N804394 | Floor console rear bolt (2 required) |
| 8 | - | Dylock pad |
| 9 | N804394 | Floor console front bolt (2 required) |
