Parcel Shelf: Notes

WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

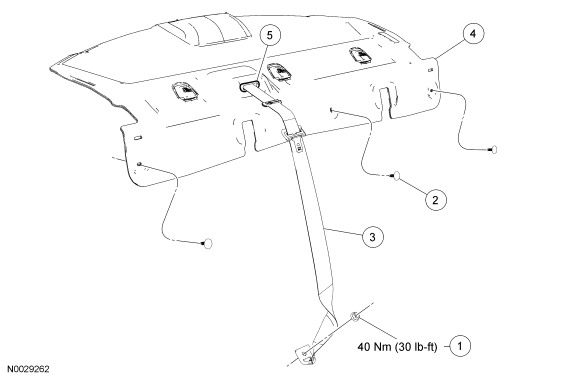

Fig 1: Exploded View Of Parcel Shelf With Torque Specifications
GF0016262Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N800937 Rear center safety belt lower anchor nut
2 W706635 Parcel shelf pin-type retainer (3 required)
3 600A38 Rear center safety belt
4 46668 Parcel shelf
5 601B30 Rear center safety belt bezel
