Interior Trim - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

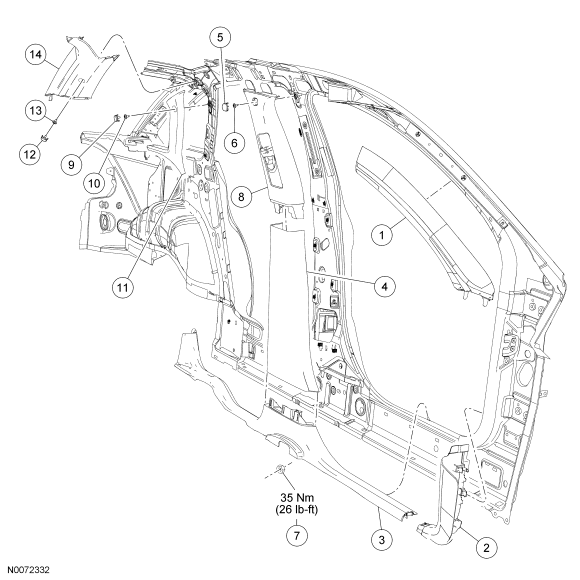

NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 03598 RH/ 03599 LH | A-pillar trim panel |
| 2 | 02344 RH/ 02345 LH | Cowl side trim panel |
| 3 | 13228 RH/ 13229 LH | Scuff plate trim panel |
| 4 | 24356 RH/ 24357 LH | Lower B-pillar trim panel |
| 5 | 672A40 | B-pillar screw cover |
| 6 | W711206 | B-pillar screw |
| 7 | - | Front safety belt anchor-to-seat nut |
| 8 | 24356 RH/ 24357 LH | Upper B-pillar trim panel |
| 9 | 672A40 | C-pillar screw cover |
| 10 | W711206 | C-pillar screw |
| 11 | 52018 RH/ 52019 LH | C-pillar trim panel |
| 12 | 672A40 | D-pillar screw cover |
| 13 | W711206 | D-pillar screw |
| 14 | 29004 RH/ 29005 LH | D-pillar trim panel |

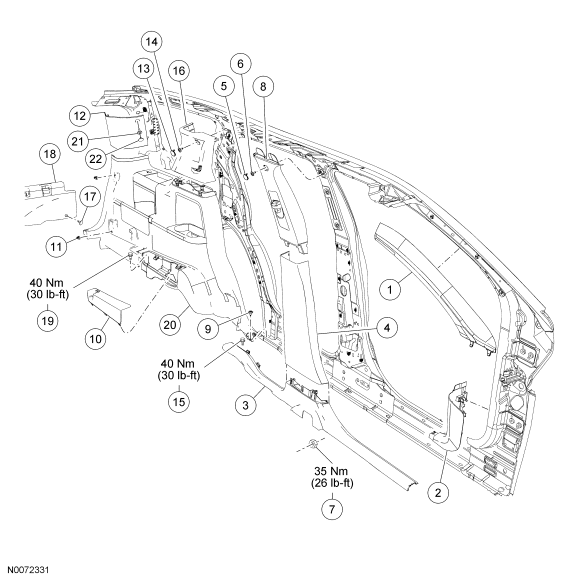

NOTE:
Vehicle without power liftgate shown, vehicle with power liftgate similar.
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 03598 RH/ 03599 LH | A-pillar trim panel |
| 2 | 02344 RH/ 02345 LH | Cowl side trim panel |
| 3 | 13228 RH/ 13229 LH | Scuff plate trim panel |
| 4 | 24356 RH/ 24357 LH | Lower B-pillar trim panel |
| 5 | 672A40 | B-pillar screw cover |
| 6 | W711206 | B-pillar screw |
| 7 | - | Front safety belt anchor-to-seat nut |
| 8 | 24356 RH/ 24357 LH | Upper B-pillar trim panel |
| 9 | W707496 | Rear quarter trim panel screw |
| 10 | 31076 RH/ 31077 LH | Third row safety belt anchor-to-floor bolt trim cover |
| 11 | - | Cargo net retaining hook (2 required) |
| 12 | 40454 RH/ 40455 LH | D-pillar trim panel |
| 13 | 672A40 | C-pillar screw cover |
| 14 | W711206 | C-pillar screw |
| 15 | - | Second row safety belt anchor-to-seat nut |
| 16 | 31004 RH/ 31005 LH | C-pillar trim panel |
| 17 | - | Liftgate scuff plate trim panel pin-type retainer |
| 18 | 11318 | Liftgate scuff plate trim panel |
| 19 | - | Third row safety belt anchor-to-seat nut |
| 20 | 31012 RH/ 31013 LH | Quarter trim panel |
| 21 | W711206 | D-pillar screw |
| 22 | 672A40 | D-pillar screw cover |
- For additional information, refer to the procedures in this article.
