Radiator Grille Support
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

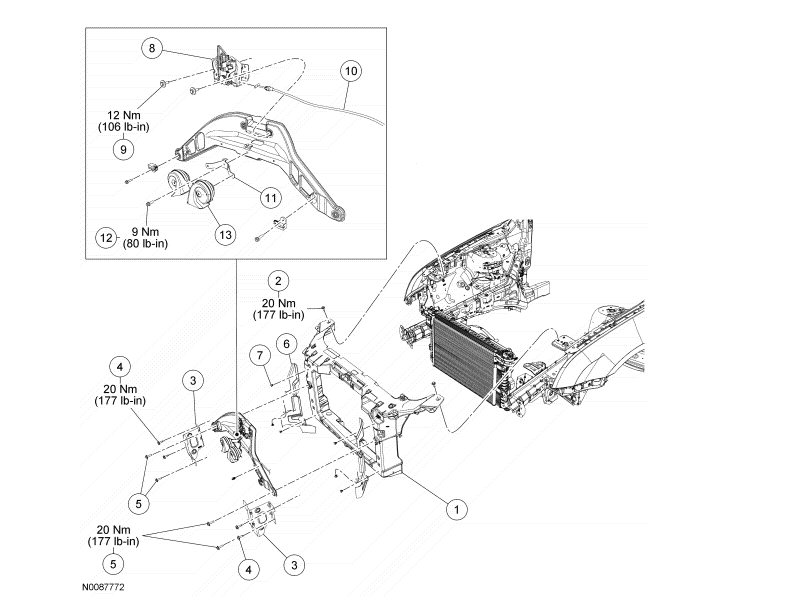

| Item | Part Number | Description |
|---|---|---|
| 1 | 16138 | Radiator grille support |
| 2 | W701834 | Upper radiator grille support bolt (2 required) |
| 3 | 8A193 LH/8A194 RH | Radiator upper brackets |
| 4 | W701834 | Radiator bracket-to-frame outboard bolts (4 required) |
| 5 | W505434 | Radiator bracket-to-radiator support inboard bolts (4 required) |
| 6 | 8310 LH/8311 RH | Radiator side air deflector |
| 7 | N806799 | Radiator side air deflector pushpin (4 required) |
| 8 | 16700 | Hatch latch |
| 9 | N606675 | Hood latch bolt (2 required) |
| 10 | 16916 | Hood release cable |
| 11 | - | Horn assembly bracket (part of 13832) |
| 12 | W505254 | Horn assembly bolt |
| 13 | 13832 | Horn assembly |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING article.

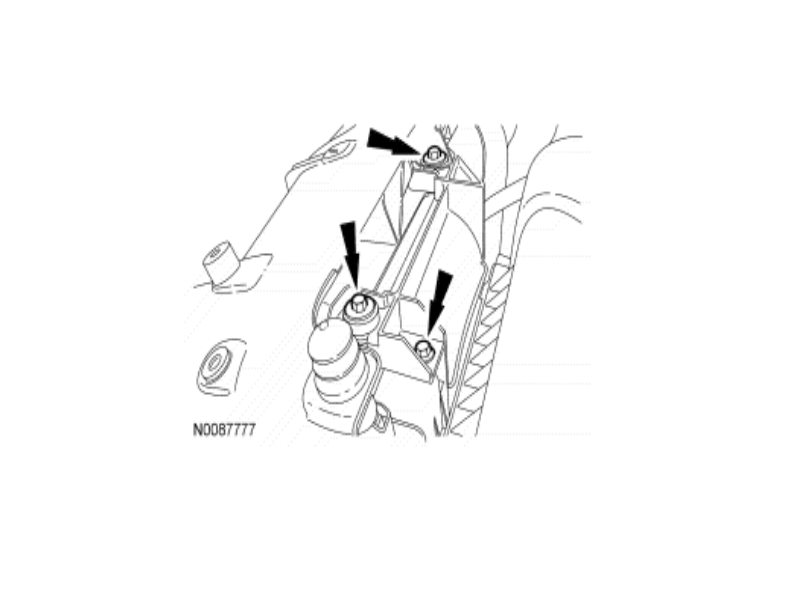

- Remove the 3 air cleaner box intake bolts.
- To install, tighten to 5 Nm (44 lb-in)
- Disconnect the hood security switch electrical connector.

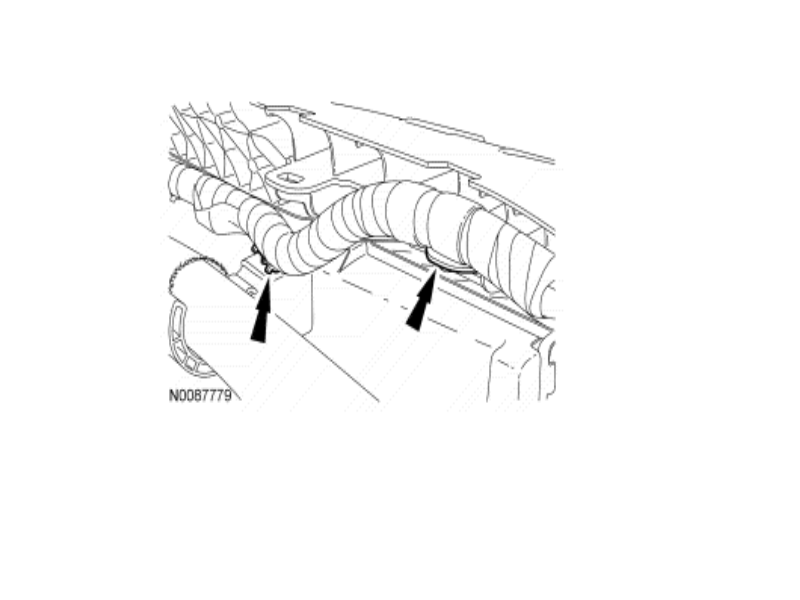

- Release the 3 engine wiring harness pushpin clips (2 shown in illustration) from the radiator support.
- Remove the front headlamps. For additional information, refer to EXTERIOR LIGHTING .
- Remove the front bumper. For additional information, refer to BUMPERS .
- Remove the LH and RH radiator side air deflector pushpins and remove the air deflectors.
- Remove the front impact severity sensor and release the harness pushpin clips. for additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
- Remove the hood latch bolts and place the latch and cable aside.
- To install, tighten to 12 Nm (106 lb-in).
- Disconnect the horn assembly wiring harness from the horn assembly and release the harness pushpin clips from the radiator support. Position the harness aside.

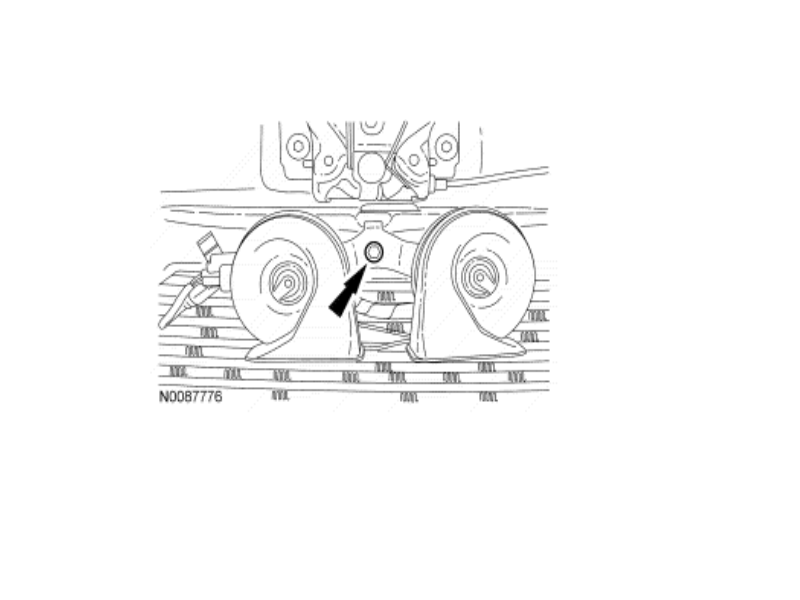

- Remove the horn assembly bolt and remove the horn assembly.
- To install, tighten to 9 Nm (80 lb-in)

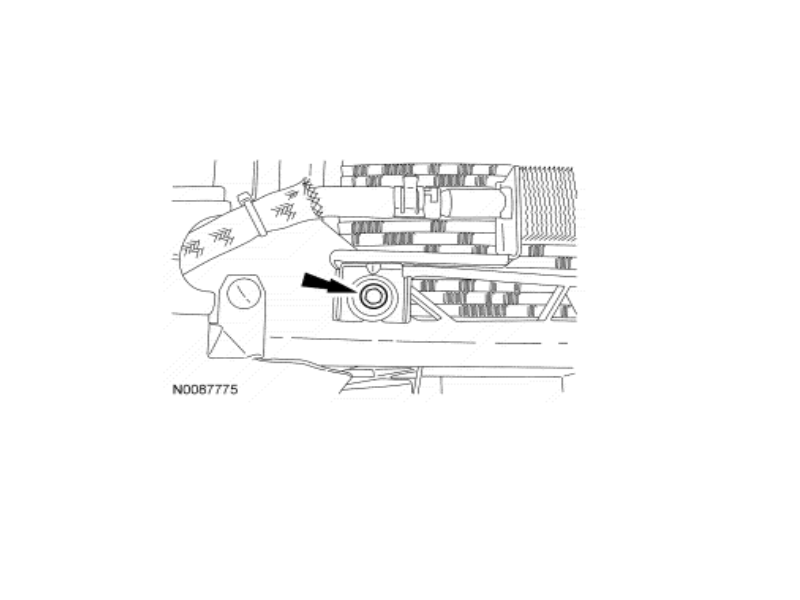

- Remove the 2 power steering cooler bolts.
- To install, tighten to 9 Nm (80 lb-in).

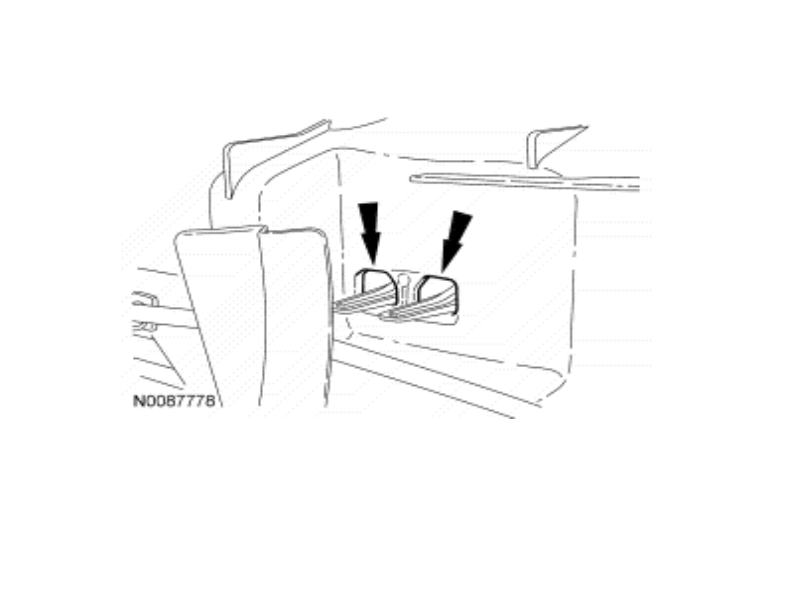

- Release the power steering cooler hose pushpin clips from the radiator support. Position and support the power steering cooler under the radiator support.
- Remove the 4 radiator bracket-to-frame outboard bolts and the 4 radiator bracket-to-radiator support inboard bolts (4 each side).
- To install, tighten to 20 Nm (177 lb-in).
- Release the cooling module retaining clips.
- Remove the 2 upper radiator grille support bolts.
- To install, tighten to 20 Nm (177 lb-in).
- Remove the radiator support.
- To install, reverse the removal procedure.
- Transfer all necessary components.
NOTE:
When installing the cooling module retaining clips, push the cooling module retaining clips toward the radiator grille support until the clips are properly secured and a snap is heard. Failure to properly secure the cooling module retaining clips may cause damage to the radiator or the cooling module assembly.
